Twin shaft concrete mixer | Paddle mixer Twin shaft concrete mixer | Paddle mixer

Machine Description

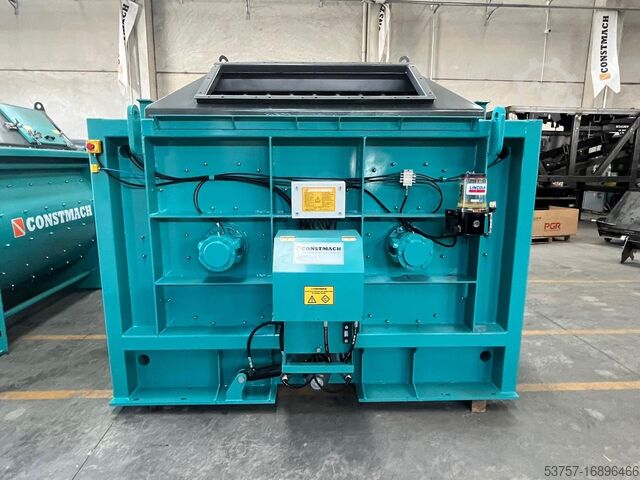

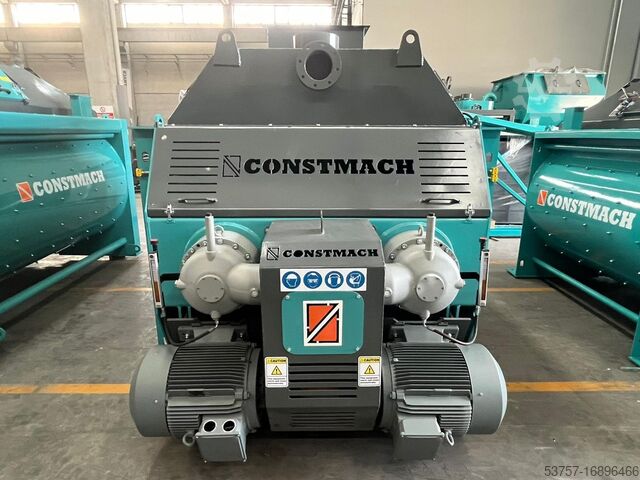

The CTS series twin shaft concrete mixers offer perfect solutions for those seeking high performance and durability. This series includes models with various loading capacities and motor power options, catering to every need. From CTS-1 to CTS-5, each model is equipped with specially designed technical features, making them ideal choices for different projects.

Every model in the CTS series is manufactured to provide high efficiency and long service life. For instance, the smallest model, CTS-1, offers a loading capacity of 1,500 liters and a fresh concrete capacity of 1,250 liters, while the CTS-5 model is perfect for larger projects with a loading capacity of 7,500 liters and a fresh concrete capacity of 6,250 liters. The motor power ranges from 37 kW to 2 x 90 kW, ensuring that each model delivers the optimal performance for the intended application.

The CTS series mixers are equipped with 15 mm Hardox and Ni-Hard wear plates on the side and main bodies, enhancing durability. The mixing arms are fitted with 25 mm or 30 mm Ni-Hard wear plates, ensuring excellent performance even after extended use. Additionally, the automatic lubrication system and hydraulic discharge doors make maintenance and discharge operations easier for users. Safety sensor-equipped maintenance covers further enhance safety, allowing operators to work with confidence.
Crrb7Mcy8S

The CTS series twin shaft concrete mixers offer model options suitable for every project, enabling you to manage your work more efficiently and effectively. These mixers, produced to high-quality standards, help elevate your work to the next level, ensuring perfect results every time. With their reliability, durability, and superior performance, the CTS series is the ideal choice for making your tasks faster and easier.

The CTS series mixers will meet all the needs required by your projects, allowing you to increase productivity and successfully complete your projects. With each model delivering outstanding performance, the CTS series will simplify your work and maximize your efficiency.

Technical Specifications of the CTS-1 Twin Shaft Concrete Mixer

Loading Capacity: 1,500 lt
Fresh Concrete Capacity: 1,250 lt
Compacted Concrete Capacity: 1,000 lt
Motor Power: 37 kW
Side Body Wear Plates: 15 mm Hardox
Main Body Wear Plates: 15 mm Ni-Hard
Mixing Arm Wear Plates: 25 mm Ni-Hard
Automatic Lubrication System: Present
Hydraulic Discharge Door: Present
Safety Sensor-Equipped Maintenance Cover: Present
Technical Specifications of the CTS-2 Twin Shaft Concrete Mixer

Loading Capacity: 3,000 lt
Fresh Concrete Capacity: 2,500 lt
Compacted Concrete Capacity: 2,000 lt
Motor Power: 2 x 37 kW
Side Body Wear Plates: 15 mm Hardox
Main Body Wear Plates: 20 mm Ni-Hard
Mixing Arm Wear Plates: 30 mm Ni-Hard
Automatic Lubrication System: Present
Hydraulic Discharge Door: Present
Safety Sensor-Equipped Maintenance Cover: Present
Technical Specifications of the CTS-3 Twin Shaft Concrete Mixer

Loading Capacity: 4,500 lt
Fresh Concrete Capacity: 3,750 lt
Compacted Concrete Capacity: 3,000 lt
Motor Power: 2 x 55 kW
Side Body Wear Plates: 20 mm Hardox
Main Body Wear Plates: 20 mm Ni-Hard
Mixing Arm Wear Plates: 30 mm Ni-Hard
Automatic Lubrication System: Present
Hydraulic Discharge Door: Present
