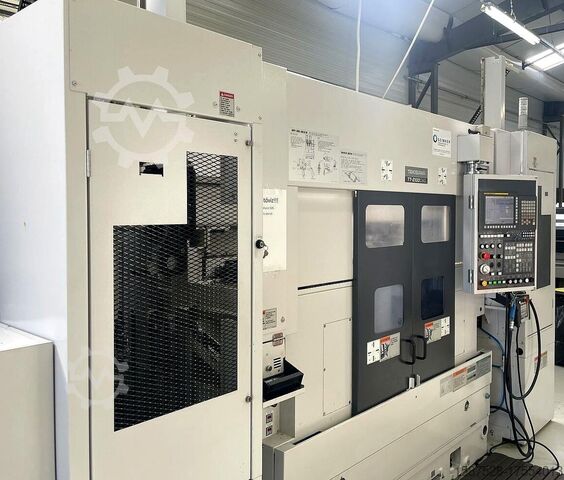

TAKISAWA TT-2100CMG

Machine Description

Front set double-spindle turning center

TECHNICAL DETAILS

Turning diameter: 240 mm
Spindle motor power: 11,000 W
Spindle speed: 3,200 rpm
Spindle bore: 90 mm

Travel
X-axis: 142 mm
Z-axis: 165 mm

Rapid traverse
X-axis: 24,000 mm/min
Z-axis: 24,000 mm/min

Electrical specifications
Type of input current: three-phase

Spindles: 2
Turning heads: 2
Driven tools: Yes
C-axis: Yes
Linear robot: 2

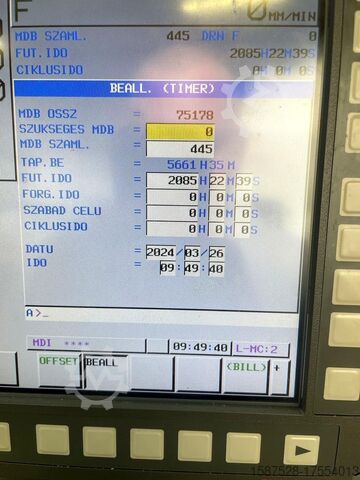

Operating hours: 2,000 hours
Version: FULL-FULL version

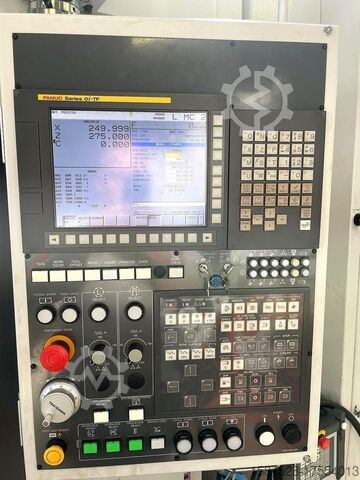

Control: FANUC 0ITD
Monitor: RAKU-RAKU MONITOR

Dimensions and weight
Overall height: 2,700 mm
Overall length: 3,590 mm
Total width: 2,610 mm
Total weight: 5,200 kg

EQUIPMENT

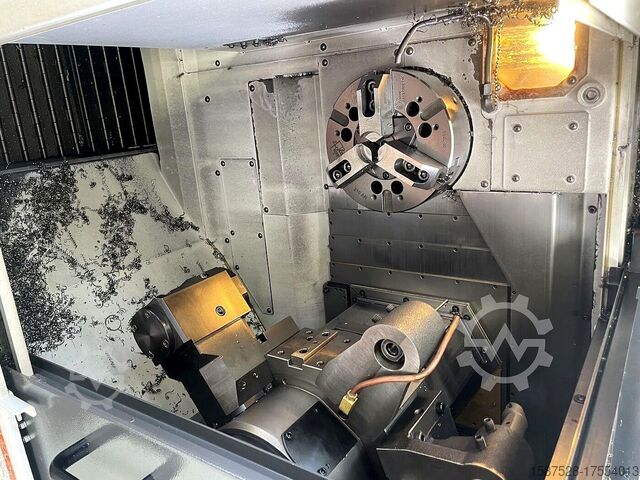

The machine is equipped with two side feeds, a collet chuck, a 3-jaw chuck and a chain conveyor.

• Documentation/Manual
• Infinitely variable speed adjustment
