KELLENBERGER UR175x1000

Machine Description

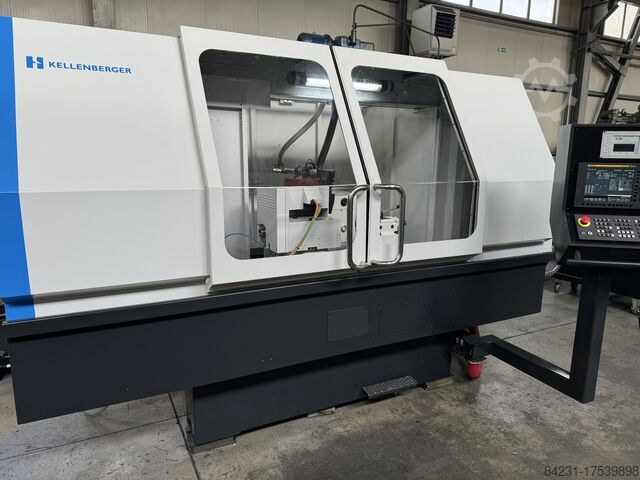

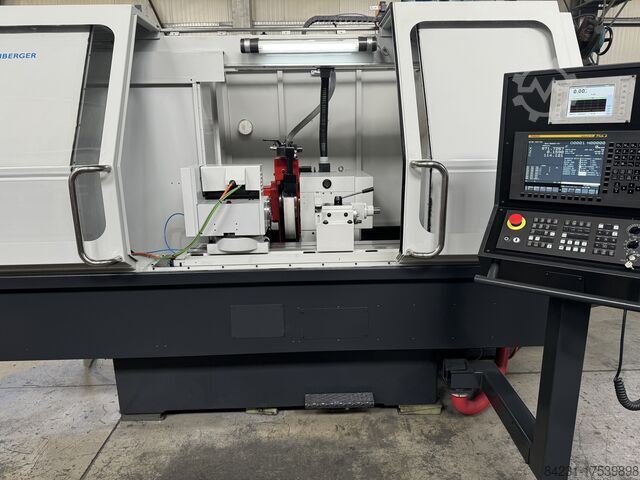

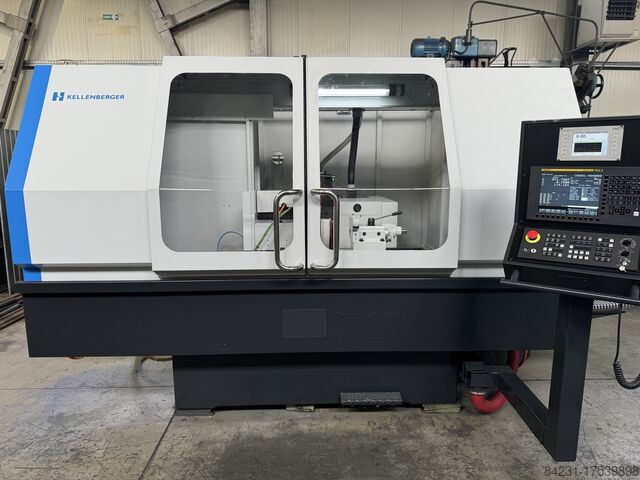

Cylindrical Grinding Machine Kellenberger UR175x1000 CNC

Machine characteristics :

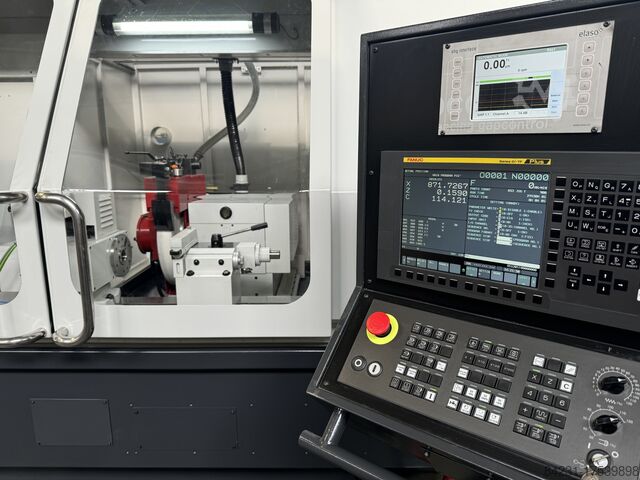

Control : Fanuc 0i-TF Plus
Centre height : 175 mm
Distance between centres : 1000 mm
Work piece spindle head: from 20 rpm up to 400 rpm
Table angular displacement : 8 °
Table speed: stepless up to 10.0 m/min
C Axis available

The machine is fully retrofitted in collaboration with Fanuc and it includes:
– New electric cabinet and new electric diagram
– New CNC command Fanuc 0i-TF Plus
– New servomotors and servodrives Fanuc
– New Elaso balancing system with GAP included
– Grinding wheel loader
– Cooling tank with paper filtration
– Geometry made according to the Kellenberger protocol

The machine is under power and it can be seen and tested anytime.
