Bystronic BySmart Fiber 3015 6KW

Machine Description

General Data
Measurements width 10495 mm
Measurements depth 6903 mm
Measurements height 2880 mm
Machine weight 11800 kg (with chiller)

Movement
X-Axis Movement 3106 mm
Y-Axis Movement 1582 mm
Z-Axis Movement 100 mm

Workpiece
Workpiece weight 1100 kg

Dnwwql
Max Material Thickness
Steel 25 mm
Stainless steel 30 mm
Aluminium 30 mm

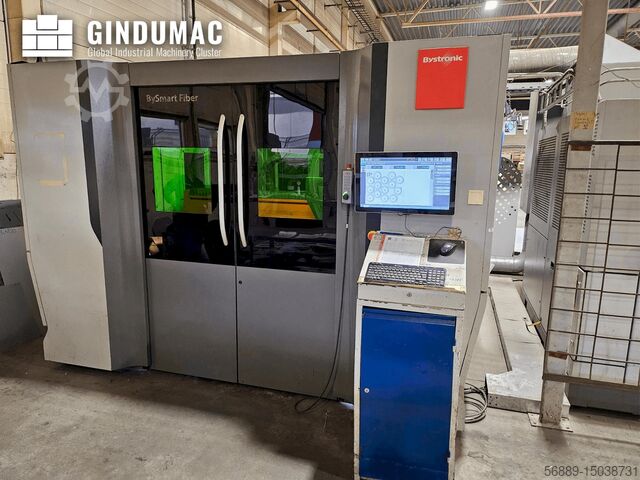

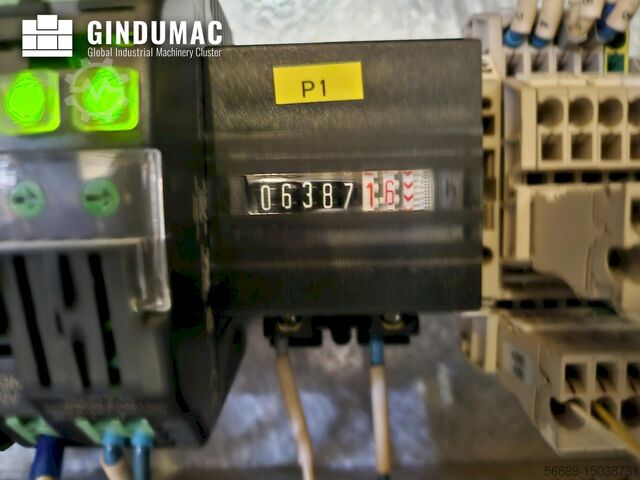

This BYSTRONIC BySmart Fiber 3015 6KW Laser Cutting Machine was manufactured in 2019. It is like new with only 6387h of operation. The cutting head was replaced with a new SSC V2.2 HLC8 (last model) end of 2023. In addition 2 modules were replaced. In total € 80.000 invested. The fiber laser has a laser power of 6kW. In production the machine can run with a sheet size of x = 3000mm and y = 1500 mm. See photo and video gallery for more impressions. Original tech specs sheet as PDF attached below.

Application Types
Laser Cutting
